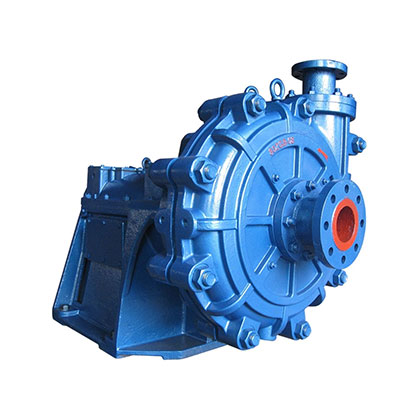

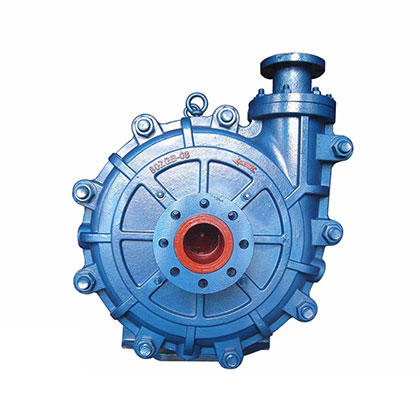

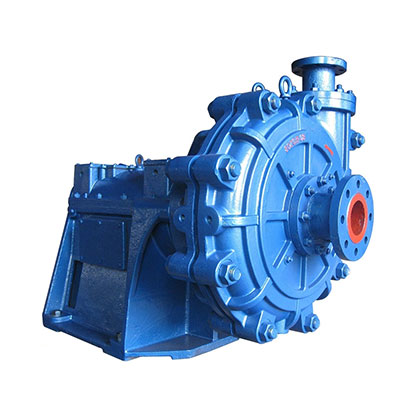

ZGB(P) series heavy duty slurry pump

■ Flow Rate:Q=50-1800(m³/h)
■ Head:H=24-94 (m)
■ Motor power:11-710kw
■ Product standard: JB/T8096-1998
■ Material: duplex stainless steel, ceramic,high chrome alloy

Introduction of ZGB(P) series heavy duty slurry pump

ZGB(P) slurry pumps is horizontal cantilever single-stage, single-suction, double-case and high head of delivery centrifugal slurry pump.
It is fit for transmission corrosive and abration slurry .it can used in metallurgy, mine, chemical industry, coal, electric power, building materials and so on. Especially the transmission of electric power plant ash.
The series of pump has the advantages of reasonable construction, high efficiency, reliable operation and easy maintenance.


1. Pump head-Double-case pump is vertical split, the discharge can be installed at 8 different positions with an interval of 45 degree.
2. Wide passage, non-clogging and good performance of NPSH;
3. Expeller seal combined with packing seal and mechanical seal have be adopted to guarantee the slurry from leakage;
4. The metric bearing with oil lubrication, reasonable lubrication and cooling systems ensure the bearing to be operated under the low temperature;
5. The materials of wet parts have the good performance of anti-wearing and anti-corrosion;
6. The pump can be used for seawater ash-removing to prevent it from the corrosion of seawater, salt and mist, and electrochemical corrosion;
7. The pump can be operated in series with multi-stage within permissible pressure. The permissible maximum working pressure is 3.6MPa.
