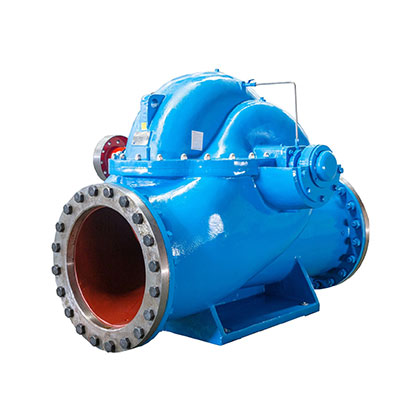

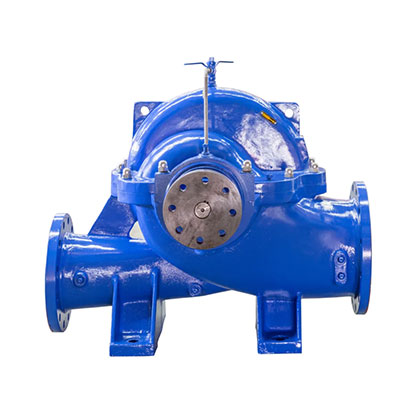

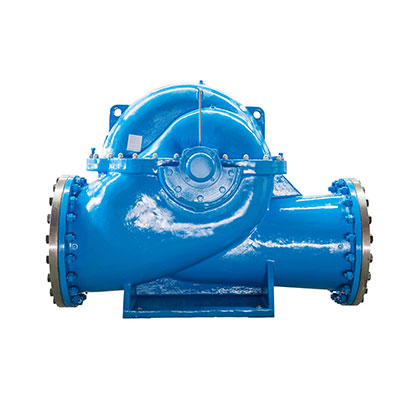

TDOW series single stage double suction centrifugal pump

■ Flow Rate:Q=22-11600(m³/h)
■ Head:H=7.7-200 (m)
■ Motor power:3-1600kw
■ product standard:GB/T5656-94

Introduction of TDOW series single stage double suction centrifugal pump

TDOW pump is a single stage, double suction split case pump, and it applied to  waterworks, the petroleum, chemical, and power industries, metallurgy, mining, air-conditioning circulation, building, agricultural and urban irrigation and drainage, electric power stations, industrial water supply systems, fire-fighting systems, and shipbuilding.


1.Compact structure, attractive appearance, good stability, and easy installation.
2.The optimally designed double-suction impeller reduces the axial force to a minimum and has a blade-style with excellent hydraulic performance.
3.Both the internal surface of the pump casing and the surface of the impeller are precisely cast, extremely smooth, and are highly resistant to vapor corrosion.
4.The pump case is double-value structured, which greatly reduces radial force, lightens the load on the bearings, and increases efficiency.
5.SKF and NSL bearings are used to guarantee stable running, low noise, and long operational duration.
6.The shaft seal uses Bergmann mechanical or stuffing seal to ensure an 8000h life with no leaks.
