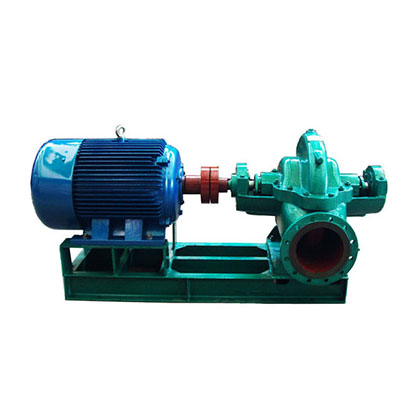

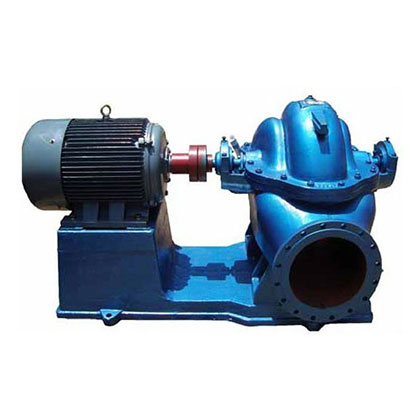

S/SH series single stage double suction centrifugal pump

■ Flow Rate:Q=112-2600(m³/h)
■ Head:H=9-140 (m)
■ Motor power:18.5-850kw
■ Product standard: GB/5656-94

Introduction of S/SH series single stage double suction centrifugal pump

S series is single stage, double suction, split case centrifugal pump. SH series is single stage, double suction horizontal centrifugal clean water pump . It is suitable for factories, mines, urban water supply system, power station, agricultural irrigation and many water conservancy projects. The temperature of the liquids pumped should be lower than 80℃.


1.Large flow capacity, high efficiency.
2.Easy operation and maintenance.
3.Long operational life- The life of the pump casing should extend to at least 30 years, with a pressure threshold of up to 10MPa.
4.The location of the inlet and outlet flange of the split case pump can be custom placed upon request.
5.The shaft, impeller, shaft sleeve, and sealing ring can be composed of a selection of different materials according to the working conditions, including cast iron, cast steel, and stainless steel (SS304, SS410, etc.).
6.Seal method: machinery seal and packing seal varieties available.
