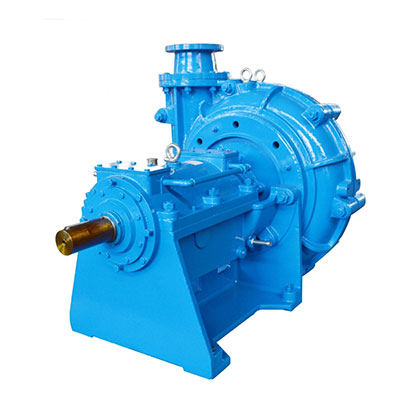

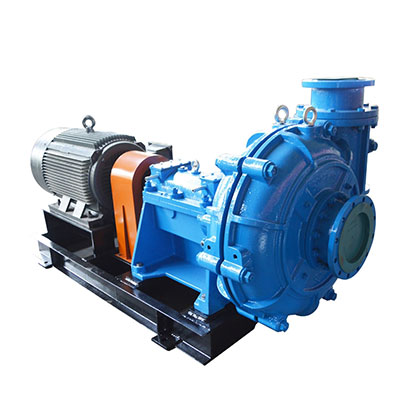

ZJ series slurry pump

■ Flow Rate:Q=10~2500(m³/h)
■ Head:H=9~130 (m)
■ Motor power:H=1.1~800kw
■ Product standard: JB/T8096-1998
■ Material: duplex stainless steel, ceramic,high chrome alloy

Introduction of the ZJ horizontal slurry pump

ZJ series Slurry pump is a single-stage ,single-suction double-casing centrifugal slurry pumps.
This type of centrifugal slurry pump can be used in series or working together in parallel and is widely used in power plants and the metallurgy, coal washing, building, and chemical industries.
The maximum weight concentration of slurry that can be processed varies with the type, approximately 45% for mortar slurry and 65% for mining slurry.


1.Wetted parts-Impellers, volutes are made of high chrome alloy and ceremic, anti-abrasive and wear resistant.
2.Bearing assembly- Tubular structure bearing assembly, design of high capacity bearing. Grease lubrication, oil lubrication helps to adapt to different operating conditions.
3.Shaft seal type- expeller seal, packing seal, mechanical seal.
4.Pump exit position- Based on 45 degree interval, rotating eight different angles of installation.
